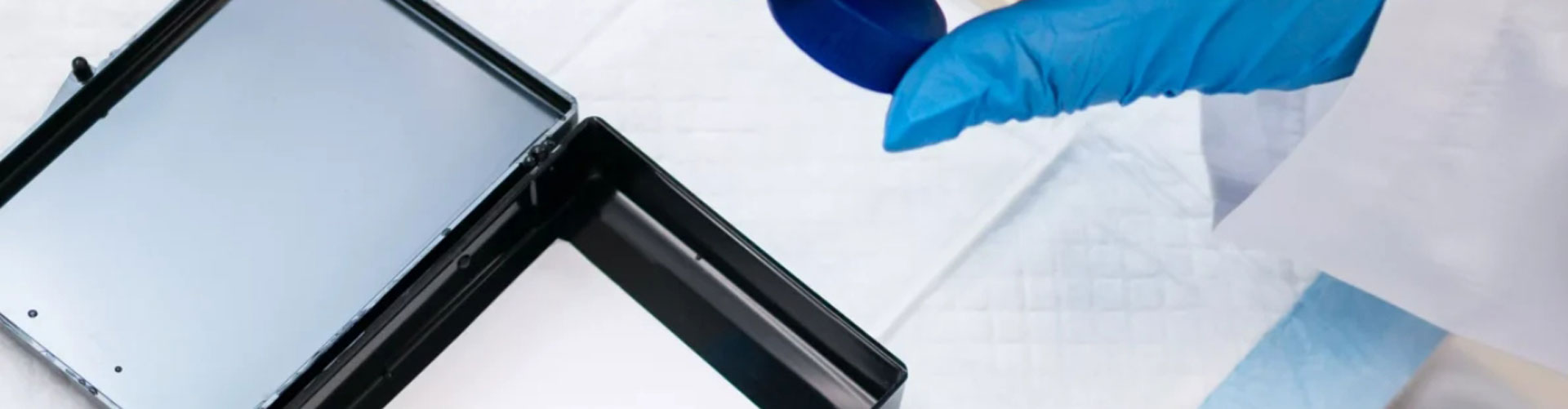

Twin SD TBLOT Fast Electrophoretic Transfer system
Technical Parameters
1. Two transfer plates can transfer 4 small gel or 2 medium gel, and the transfer program can be set independently.
2. Transfer size 15.5ⅹ11cm;
3. The original high-efficiency air duct heat dissipation design can effectively discharge the high heat generated during transfer. Low-temperature operation greatly guarantees the reliability of the experiment and avoids damage to the instrument components;
4. Transfer speed: 2 small gel transfers within 3 minutes; 4 small gel or 2 medium gel transfers within 7 minutes;
5. Built-in integrated power supply, voltage 0-26V (1V adjustable), current 0-2.6A (0.1A adjustable);
6. 5-inch touch screen, easy to operate. It can realize automatic program operation monitoring in unmanned mode; there are preset programs to help guide experimental design, and the program can be manually modified and stored according to actual needs (historical automatic storage and customer-defined storage of 25 sets of data each);
7. Electrode design: snap-on locking method with plate electrode design, with through-type spring compression inside to ensure uniform pressure and field strength;
8. You can choose to quickly preset the program, or manually enter the transfer conditions; compatible with traditional semi-dry transfer consumables, can perform 30 minutes of semi-dry transfer; compatible with various gel types and concentration ratios; the program can be customized and stored by the user;
Ordering information
|
Item number |
Name |
Model |
Description |
|
332002 |

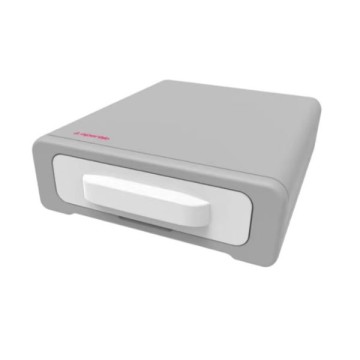

Semi -Dry Electrophoretic Transfer Cell |
Single SD TBLOT |
10-18 minutes for fast transfer printing, supporting 2 mini glue for fast transfer printing |
|
332004 |
Fast Electrophoretic Transfer system |
Twin SD TBLOT |
3-7 minutes fast rotation, supports 4 pieces of glue, independent control of two drawers, touch screen |
