qMate Mini Nucleic Acid Extraction System
Sample Preparation
Products Categories

qMate Mini Nucleic Acid Extraction System

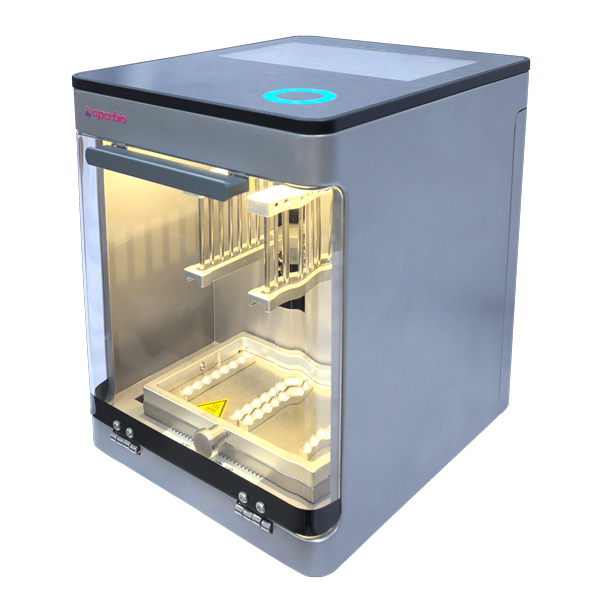

The qMate mini is an efficient, reliable and convenient fully automatic nucleic acid extraction and purification system. It adopts the magnetic bead technology and can complete the nucleic acid extraction of 1 to 16 samples within 30 to 60 minutes. It is widely used in fields such as animal epidemic control, disease prevention and control, agricultural science and translational medicine, providing users with stable and high-quality nucleic acid extraction solutions.

    Contact us
    Overview
    Ordering information
    Resources

    Working Principle

    Through the transfer of magnetic beads, the steps of cell lysis, adsorption of nucleic acids, washing of nucleic acid impurities, and elution of nucleic acids are completed, thereby obtaining highly pure nucleic acids.

    qMATE Mini Nucleic Acid Extraction System

    System Feature

  • ● Magnetic bead pre-sealing plate: The magnetic beads and reagents are pre-packaged into the well plates; this simplifies the operation process, enhances the standardization level and detection throughput, and reduces human errors.
  • ● Efficient and rapid: Quickly obtain high-purity and intact nucleic acids.
  • ● Flexible: Can handle 1 to 16 samples simultaneously and supports custom program writing
  • ● Anti-pollution: It has ultraviolet disinfection function and is equipped with a HEPA filtration system, effectively preventing aerosol contamination.

    • Kit Feature

    The aperbio DNA extraction solution, as a key technology for molecular testing, plays a significant supporting role in animal epidemic control, public health, agriculture, and translational medicine.
  • ● Easy operation: Reagents are dispensed into pre-sealed plates and can be used immediately.
  • ● Efficient and rapid: Obtain high-purity and intact nucleic acids quickly.
  • ● Standardized operation: Pre-packaged reagents ensure consistency between batches and eliminate human errors.
  • ● Various sample types: Seed powder, plant leaves, cells, etc.
  • ● Wide range of sample quantities: 4 mg - 100 mg
    •

    Specification

    Product model

    qMate mini

    Sample throughput

    1-16

    Processing volume

    20-1200 μl

    Type of consumables

    96-well conical bottom deep-well plates, 96-round bottom well plates, reagent strips (6 wells), 8-row Magnetic sleeve rod

    Magnetic bead recovery rate

    >98%

    Inter-well difference

    CV<5%

    Operation interface

    7-inch touch screen

    Pollution control

    Ultraviolet disinfection, negative pressure exhaust system

    Ordering Information

    Catalog Number

    Product name

    Model

    Description

    691101

    Nucleic Acid Extraction System

    qMATE mini

    qMATE mini, Automated purification system, 16 samples

    We have a variety of reference materials available, including colour brochures , technical guides, professional literature and operation videos. If you need to consult or obtain relevant materials, please fill in the information below to contact us.

    For Research Use Only.
