Accurate and fast, Pangaea fast Real-time PCR system

NMPA CE

Pangaea Real-time PCR System has obtained the certifications of the National Medical Products Administration (NMPA, with the registration number of 20243220680 in China for medical devices) and the CE Certification of the European Union. It is a nucleic acid detection platform integrating high efficiency, precision and convenience, and is specially designed to meet the diverse needs of modern molecular diagnosis laboratories. Its outstanding performance and reliable quality provide a solid guarantee for your experimental data.

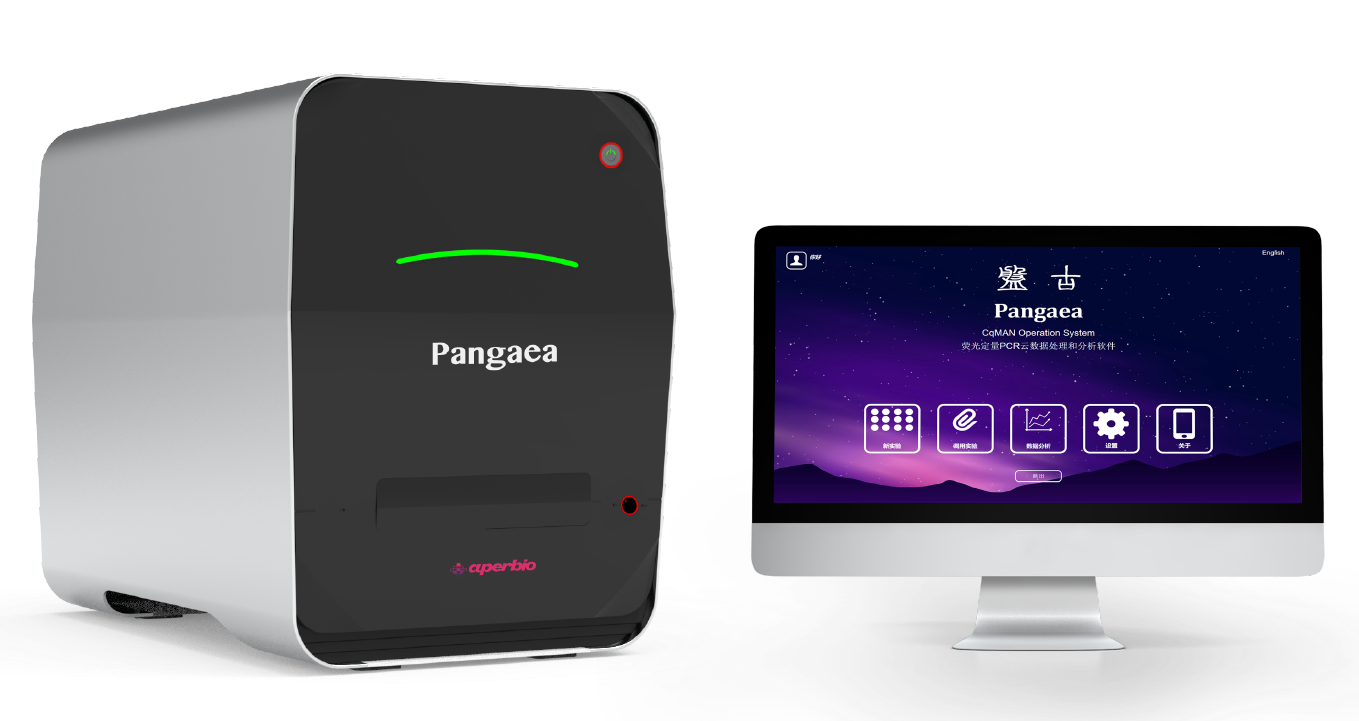

Pangaea real-time PCR

Technical features

Precise temperature control system

Marlow semiconductor temperature control: >500,000 cycle life
High heat conversion efficiency
Temperature uniformity≤ ±0.15℃
Temperature accuracy ≤±0.08℃, ensuring data accuracy and uniformity

Best-in-class heating and cooling speed

Maximum Heating Temperature speed ≥8.5℃/S, fast results

Adopt optical waveguide detection system

Significantly reduces background noise and eliminates edge effects

Control software that complies with international standards

International software design and operation specifications, easy operation and data visualization

Intelligent pressure system

Compatible with 0.1ml and 0.2ml consumables

Perfect electric control

It can realize a fully automatic workstation and carry out large-scale fully automatic testing

Excellent performance

Good consistency

The template of the FAM channel (105 copies/μL) for 96-well assay.
The figure shows 96 replicate wells of a 20 μL reaction system.
Cq = 21.38 ± 0.13.

02

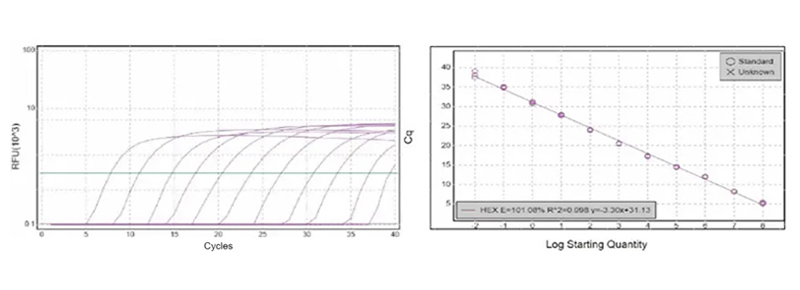

11 orders of magnitude dynamic range

11

The linear range of the Pangaea Fast Real-time PCR system was tested.
Plasmid DNA was diluted 10 times in a gradient, with a total of 11 concentration gradients, and HEX probe was used for detection.R2=0.998.
The results show that Pangaea has a wide range of dynamics Study scope.

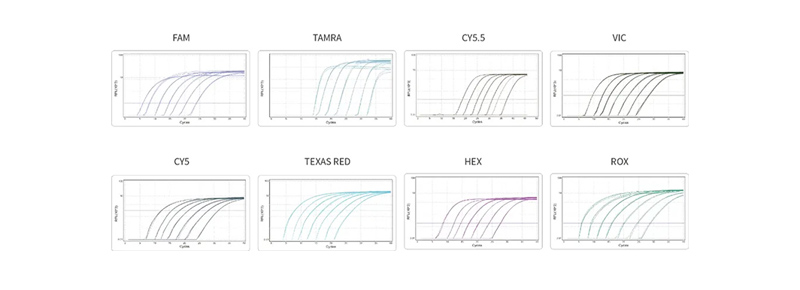

Excellent 6-fold detection capability

22

Pangaea Fast Real-time PCR system is capable of achieving single-tube 6-plex detection capabilities. The proven excellent filter combination design can detect the fluorescence signal of specific dyes in specific channels to the greatest extent without fluorescence crosstalk.

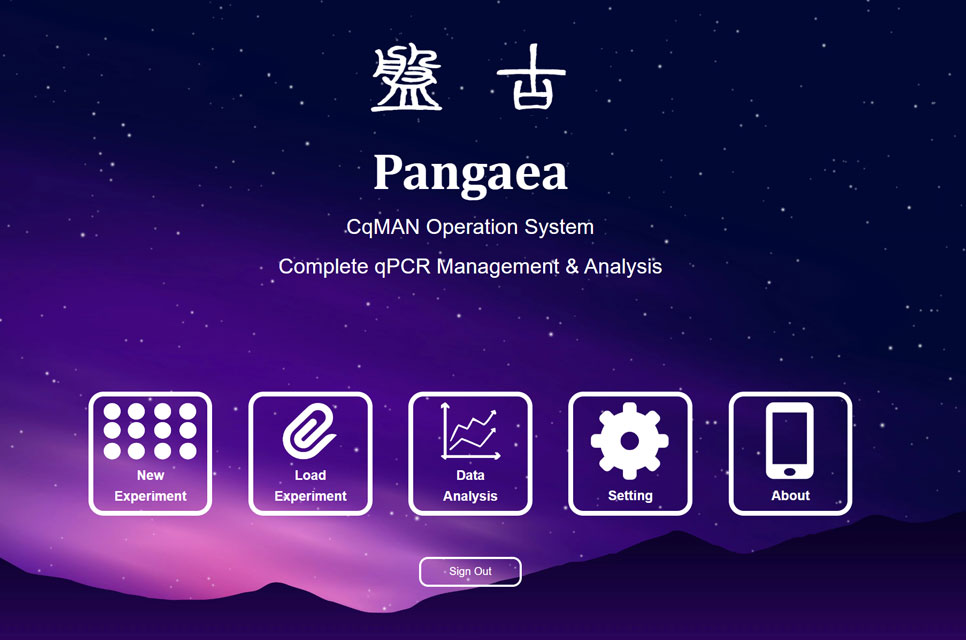

CqMAN quantitative operation software that complies with international standards

International software design and operation specifications, easy operation, data visualization, support for multiple languages ​​including Chinese and English.

0
08mxn

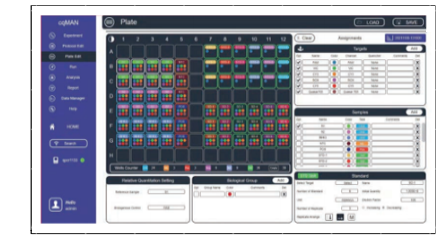

One-click switching between Chinese and English reduces the learning curve. • A wizard window greatly simplifies the setup process. • Supports running the program first and then setting the plate, saving experimental time.

09idv

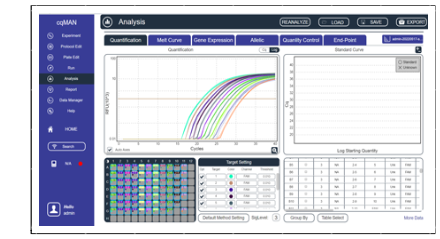

Rapid negative/positive discrimination, intuitive and reliable.• Experimental design, plate layout, and program settings can be saved independently or in full as templates for fast experiment running.


Order Information

Model Catalog Channel
Pangaea 3fast H621103 FAM/VIC/ROX
Pangaea 4fast H621104 FAM/VIC/ROX/CY5
Pangaea 5fast H621105 FAM/VIC/TAMRA/ROX/CY5
Pangaea 6fast H621106 FAM/VIC/TAMRA/ROX/CY5/Quasar705

References

1. Zhang et al. Evaluation validation of a qPCR curve analysis method and conventional approaches. BMC Genomics (2021) 22:680
https://doi.org/10.1186/s12864-021-07986-4.
2. Afif M Abdel Nour, Michael W Pfaffl et al. (2022). MIQE qPCR & dPCR How to apply the MIQE Guidelines .ISBN: 9783000488061
