Naica® fully automated droplet digital PCR system
Naica® fully automated droplet digital PCR system
Stilla Crystal digital PCR technology is the pioneer of the third-generation droplet digital PCR technology. The Naica® next-generation digital PCR platform uses top-designed microfluidic chips as consumables. It only requires one step of manual operation to divide the sample into a single-layer droplet array in the chip through a restricted gradient, with droplet visualization reading and quality control, and intelligent software analysis.
Headquartered in Paris, France, Stilla Technologies of France is dedicated to providing breakthrough, multiplex digital PCR technology. With a global team of multidisciplinary expertise, it uses the most advanced microfluidics, chemistry, molecular biology, computer science and other technologies to develop advanced digital PCR solutions for quantitative gene detection and analysis. It is committed to providing high-precision genetic analysis solutions to researchers and clinicians around the world to improve health.

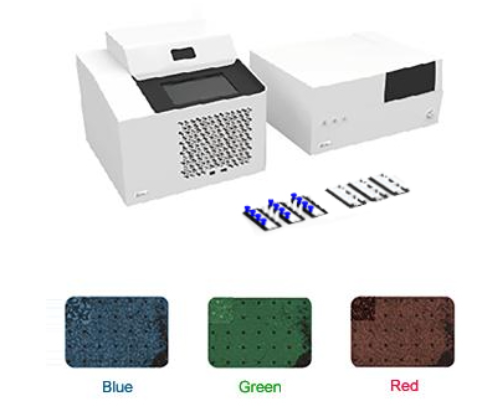

Naica® fully automatic droplet digital PCR system is the pioneer and leader of the third-generation digital PCR technology. It has a fully automatic intelligent workflow and an intuitive and friendly interactive interface. It provides users with the simplest solution for absolute quantification of target nucleic acids with just one step of sample addition. The powerful AI image recognition technology enables droplet visualization quality control and traceability of original results to ensure data credibility and reliability. With the advanced design of 3-color fluorescent channels and unique crosstalk compensation, it breaks through channel limitations, realizes high-order multiple detection, and saves time and cost.
Work Process
Loading
The only consumable is one-step sample addition, and the rest of the steps are completed automatically
5X, 10X premixed solution, increase the sample addition volume
The chip is fully sealed to prevent contamination

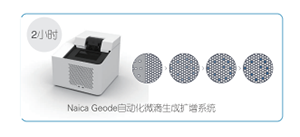

Preparation
Automatic integrated droplet generation and PCR amplification;
Single well can reach 30,000 droplets, with a wider dynamic range;
Flexible sample throughput 1-48 samples;

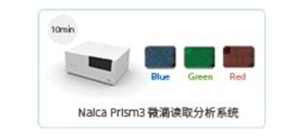

Read
Simultaneous three-color fluorescence channel detection;
1-48 samples are detected simultaneously;
Provide collection templates for fast reading;
Analyze
One-click automatic analysis
Automatic visual quality control and droplet traceability
Multiple fluorescence crosstalk identification and personalized fluorescence compensation
Core technology carrier
Unique microfluidic chemical design, built-in oil phase, PCR reaction solution passes through a uniform and consistent limiting gradient pipeline and self-assembles into a single-layer 2D droplet matrix in the chip. As the only consumable, it runs through the entire process from sample loading to data analysis.
 |

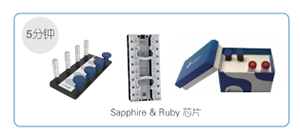

Sapphire high sensitivity chip4 samples/chip
1-3 chips can be tested simultaneously, that is, 1-12 samples can be tested
|
 |
Ruby High-Throughput Chip16 samples/chip
1-3 chips can be tested simultaneously, that is, 1-48 samples can be tested
|
Features

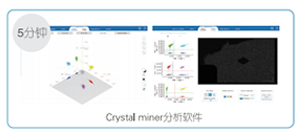

Crystal Miner automatic intelligent visualization software
Intelligent and effective droplet identification to ensure data accuracy

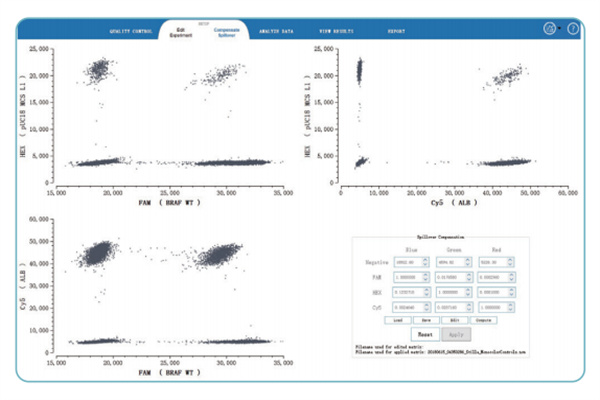

Fluorescence compensation algorithm to correct fluorescence overflow or fluorescence crosstalk

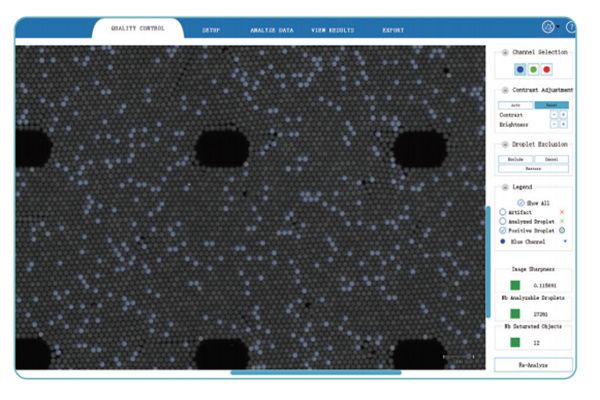

Droplet visualization quality control function ensures uniform volume of effective droplets

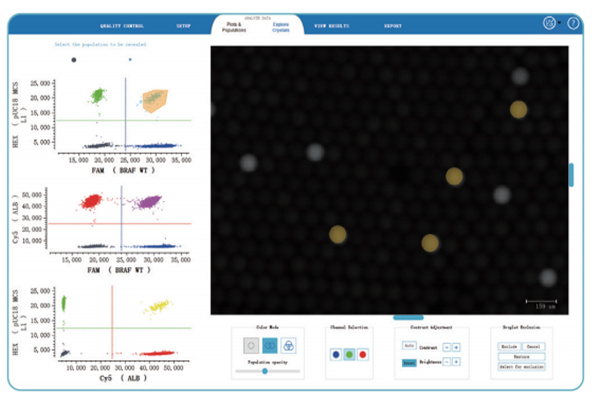

Visual traceability analysis of droplets, tracing the droplets in a group to obtain reliable results
